This document provides information about the features and characteristics of Motorola's products, including product suitability, disclaimer of liability, and usage precautions.

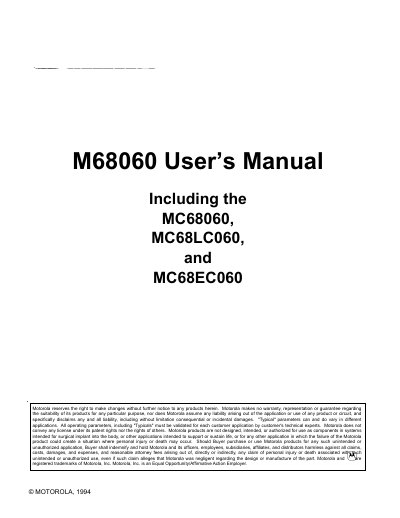

This manual provides detailed information on the M68060, MC68LC060, and MC68EC060 microprocessors, covering their architecture, signal descriptions, integer and floating‑point units, memory management, caches, bus operation, exception handling, and test/debug modes. It also includes electrical and thermal characteristics, ordering information, and appendices for each device variant.
The document is organized into sections such as Introduction, Signal Description, Integer Unit, Memory Management Unit, Caches, Floating‑Point Unit, Bus Operation, Exception Processing, JTAG and Debug, Instruction Timings, Applications, and Mechanical Data, followed by appendices that detail the specific differences among the M68060 family members.
| Processor architecture | 32‑bit superscalar |
|---|
It describes the capabilities, operation, and programming of the M68060 superscalar 32‑bit microprocessor family.
