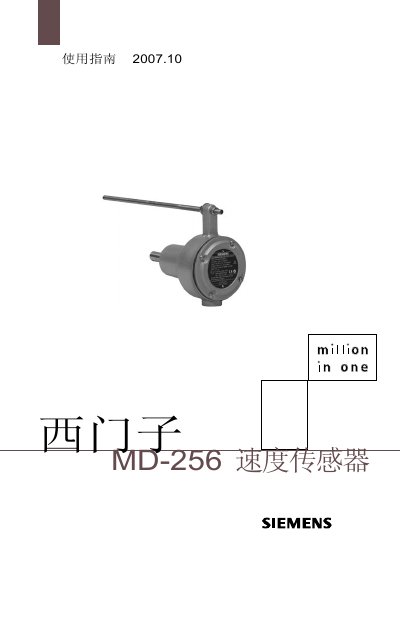

Siemens MD-256 speed sensor manual, introduces the scope of use, safety warnings, manual content, product introduction, specifications, installation, maintenance, troubleshooting, etc.
The Siemens MD-256 speed sensor manual provides detailed safety instructions, specifications, and step‑by‑step procedures for installing, wiring, and maintaining the device. It covers both normal and hazardous‑area installations, including connection to Siemens integrators and SIWAREX FTC modules.
The guide also includes dimensions, cable recommendations, and certification information to ensure compliant use in industrial weighing systems. Regular maintenance and troubleshooting tips are provided to keep the sensor operating reliably. This manual is written in Chinese.
| Power supply voltage | +10 to +30 V DC, 30 mA |
|---|---|
| Operating temperature range | -40 °C to +55 °C |
| Shaft speed range | 0.5 ~ 470 rpm |
| Pulses per revolution | 256 pulses/rev |
| Output frequency range | 2 ~ 2000 Hz |
| Enclosure rating | Aluminum, NEMA 4X/Type 4X/IP65 |
| Cable type | 3‑core shielded, 0.82 mm² (18 AWG) |
| Maximum cable length | 305 m (1000 ft) |
| Weight | 1.22 kg (2.68 lb) |
| Certifications | CSA/FM Class II, Div. 1 (E,F,G, Class III); ATEX II 2D, Ex tD A21 IP65 T70°C CE |
It requires a DC supply of +10 to +30 V with a current draw of up to 30 mA.
The sensor outputs 256 pulses for each full rotation of the shaft.
The cable can be up to 305 m (1000 ft) long.
It is certified to CSA/FM Class II, Div. 1 (Groups E, F, G, Class III) and ATEX II 2D, Ex tD A21 IP65 T70°C CE.
