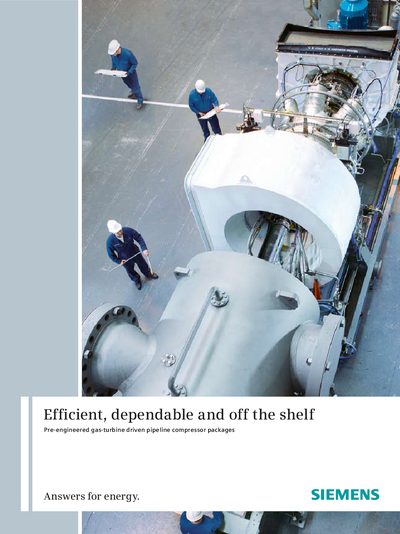

Siemens Pipeline Compressor Packages are pre-engineered gas turbine compressor packages for pipeline applications. These combine our standard ranges of Siemens Gas Turbines (SGTTM) and Siemens Turbocompressors (STCTM) optimized to provide you with the best technical and cost efficient solution for your transmission and distribution needs. The compressors cover a flow range of 5,000 – 38,000 actual m3/hr (3,000 – 22,500 ACFM) with pressure ratios up to 2.0. Gas turbines with powers up to 13 MW (ISO) offer the best efficiency in their class with Siemens world beating dry low emissions or standard combustion systems. Siemens Pipeline Compressor Packages come with a range of pre-engineered standard options to meet customerspecific requirements.
Siemens Pipeline Compressor Packages combine standard Siemens Gas Turbines (SGT™) and Siemens Turbocompressors (STC™) into pre‑engineered, off‑the‑shelf solutions for pipeline transmission and distribution. The packages cover a flow range of 5,000 – 38,000 actual m³/hr with pressure ratios up to 2.0, and are available in three sizes matched to the SGT‑100, SGT‑200 and SGT‑400 gas turbines.
Each package includes a full set of documentation (package drawings, foundation details, P&IDs, and critical speed reports) and features single‑source responsibility, cost‑efficient designs, short lead‑times, condition monitoring, on‑condition maintenance, and long‑term service agreements.
| Flow range | 5,000 – 38,000 actual m³/hr |
|---|---|
| Pressure ratio | up to 2.0 |
| SPCP‑100 ISO power | 4.92 MW |
| SPCP‑100 nominal speed | 13,000 rpm |
| SPCP‑100 max casing pressure | 110 bar g |
| SPCP‑100 nozzle size | 20 inch – class 900 |
| SPCP‑200 ISO power | 7.68 MW |
| SPCP‑200 nominal speed | 10,950 rpm |
| SPCP‑200 max casing pressure | 110 bar g |
| SPCP‑200 nozzle size | 24 inch – class 900 |
| SPCP‑400 ISO power | 13.4 MW |
| SPCP‑400 nominal speed | 9,500 rpm |
| SPCP‑400 max casing pressure | 125 bar g |
| SPCP‑400 nozzle size | 30 inch – class 900 |
They are offered in three sizes based on the SGT‑100, SGT‑200 and SGT‑400 gas turbines (SPCP‑100, SPCP‑200, SPCP‑400).
Each package includes package drawings, foundation details, P&IDs, and a torsional and lateral critical speed report.
Benefits include single‑source responsibility, cost‑efficient solutions, short lead‑times, condition monitoring, on‑condition maintenance, in‑field serviceability, and long‑term service agreements.
The SPCP‑400 package is rated for a maximum compressor casing pressure of 125 bar g (1,812 psig).
