The document describes the features and characteristics of the AJ-DVCPRO product.

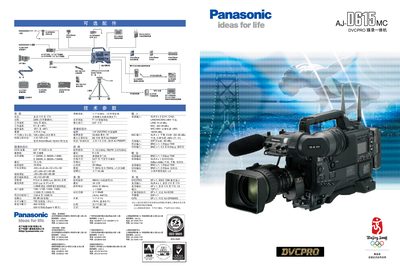

The AJ‑D615MC combines high‑quality imaging, mobility, and reliability for news gathering and field production. It features a 2/3‑inch 600 000‑pixel 3CCD sensor, 60 万像素 resolution, and a wide‑dynamic‑range optical system with F1.4 lens, delivering up to 750 lines of resolution and a signal‑to‑noise ratio over 62 dB.
The manual covers operation basics such as quick‑response standby (≈3 s) and recording start (≈0.5 s), audio and video input/output options (XLR, BNC, IEEE‑1394), power consumption (24 W), and optional accessories like GPS modules and wireless microphones. Detailed specifications, user button configuration, white‑balance tracking, interval recording, and digital zoom are also described. This manual is written in Chinese.
| Sensor | 2/3 inch 600,000‑pixel 3CCD |
|---|---|
| Minimum illumination | 0.01 Lux at F1.4 |
| Signal‑to‑noise ratio | > 62 dB |
| Power consumption (recording) | 24 W |
| Weight | ≈ 4.1 kg |
| Operating temperature | 0 °C to +40 °C |
| Audio input | XLR‑3×2 (CH1, CH2) |
| Video output | BNC x1 1.0 Vp‑p 75 W |
| Maximum continuous recording time | ≈ 120 minutes |
It enters standby in about 3 seconds and starts recording within 0.5 seconds after pressing the REC button.
The camcorder can record in as little as 0.01 Lux when the lens is set to F1.4.
It follows the IEEE‑1394 (FireWire) digital interface standard.
The device uses about 24 W of power when recording without the viewfinder.
