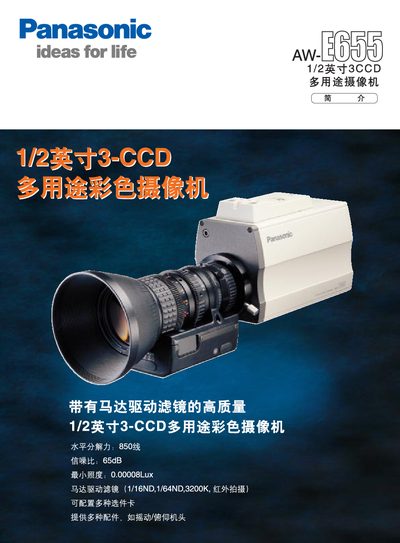

The Panasonic AW‑E655 is a 1/2‑inch 3‑CCD camcorder designed for versatile use. It offers high‑quality imaging with a horizontal resolution of over 850 lines, a signal‑to‑noise ratio better than 65 dB, and a minimum illumination as low as 0.00008 Lux in charge‑accumulation mode. The camera includes a motor‑driven filter (1/16 ND, 1/64 ND, 3200 K) that can be rotated for infrared shooting, and it supports various optional function cards for expanded connectivity.
The unit is powered by a 12 V DC supply with a typical power consumption of about 12 W. It weighs approximately 1.1 kg and measures 84 mm × 111 mm × 183 mm. A range of accessories such as motor‑driven zoom lenses and indoor/outdoor cloud‑fusion systems are available, and optional SDI cards (A‑PB504) and SDI studio interface cards (AW‑PB506) can be installed via the AW‑EX100 card box. This manual is written in Chinese.
| Sensor | 1/2‑inch 3‑CCD |
|---|---|
| Horizontal resolution | 850 lines |
| Signal‑to‑noise ratio | 65 dB |
| Minimum illumination | 0.00008 Lux |
| Motor‑driven filter options | 1/16 ND, 1/64 ND, 3200 K, infrared |
| Power supply | 12 V DC |
| Power consumption | ≈12 W |
| Weight | 1.1 kg |
| Dimensions (W × H × D) | 84 mm × 111 mm × 183 mm |
The camcorder can operate with a minimum illumination of 0.00008 Lux in charge‑accumulation mode.
It uses a motor‑driven filter that can be set to 3200 K, 1/16 ND, or 1/64 ND and can rotate to enable infrared capture.
The camcorder consumes approximately 12 W of power.
