The Panasonic AK-HC3500 HD multi-format camera uses Panasonic's latest 2.2-megapixel, 2/3-inch IT CCD and a new generation of 14-bit A/D conversion circuits, as well as Panasonic's unique pixel bias processing technology and 38-bit DSP digital processing circuits, and provides you with excellent images. To meet the needs of a variety of shooting, it is also designed according to human engineering, making the operator feel more comfortable and convenient. With these outstanding performance, this ideal multi-format camera opens the door to a new era of high definition.

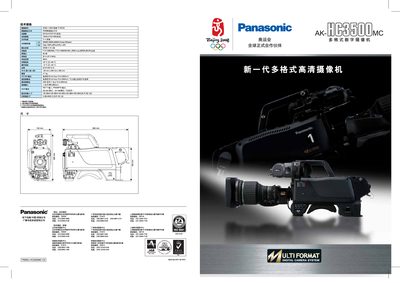

The Panasonic AK‑HC3500MC camcorder manual provides detailed technical specifications, system configuration, and operating instructions. It covers the 2‑inch 2.2 MP IT‑3CCD sensor, F1.4 lens, dynamic range, power consumption, dimensions and weight.
Installation guidance includes lens mount, cable interfaces, and optional accessories such as SD‑SDI or VBS output boards. The manual also describes camera control unit connections, temperature limits, and power requirements for studio and field use. This manual is written in Chinese.
| Sensor | 2‑inch 2.2 MP IT‑3CCD |
|---|---|
| Optical System | F1.4 lens |
| Dynamic Range | 600 % |
| Power Consumption | 12 W |
| Dimensions (W × H × D) | 135 mm × 260 mm × 360 mm |
| Weight | ≈ 14.5 kg |
It uses a 2‑inch 2.2 MP IT‑3CCD sensor with an effective resolution of 1920 × 1080 pixels.
The camcorder consumes about 12 W and can operate from –20 °C to +45 °C.
The camera provides a dynamic range of 600 %.
The unit measures 135 mm × 260 mm × 360 mm and weighs approximately 14.5 kg.
