WJ-RT416 digital disk recorder user manual, introduces the characteristics and features of the product, usage methods, precautions, etc.

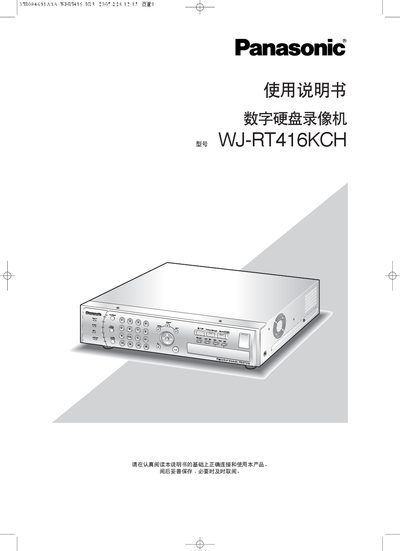

This manual covers safety precautions, proper grounding, and environmental requirements for the Panasonic WJ-RT416KCH digital hard‑disk video recorder. It explains how to connect the unit to a 220‑240 V AC power source, install the hard drive, and set up the device for reliable operation.
The guide also details the system’s features such as support for up to 16 cameras, recording modes, alarm functions, network remote operation, and maintenance procedures including battery replacement and hard‑drive servicing. Technical specifications and accessory lists are provided at the end of the document. This manual is written in Chinese.
| Power Supply | 220‑240 V AC |
|---|---|
| Operating Humidity | 5 % – 90 % |
| Camera Channels | 16 CH |
| Supported Hard‑Disk Capacities | 500 GB, 1000 GB, 1500 GB |
| Frame Interval (default) | 4 |
| Recording Time (10 h/day) | 10 hours per day |
| Recording Time (24 h/day) | 24 hours per day |
| Internal Battery Life | ≈5 years |
The unit must be connected to an AC power source of 220‑240 V.
The recorder supports up to 16 camera channels.
The internal battery lasts about five years and should be replaced only with the same type or an equivalent type; improper replacement can be hazardous.
