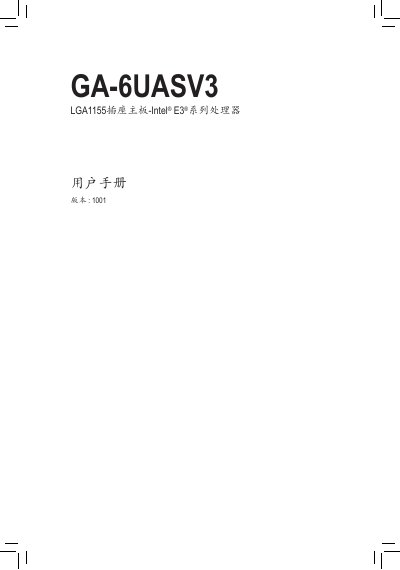

GA-6UASV3 LGA1155 socket motherboard - Intel® E3® series processor User Manual, introduces how to install CPU, memory, hard disk and other hardware and set BIOS related content
This manual covers hardware installation, including CPU, memory, and internal connector setup, as well as safety precautions such as ESD protection. Detailed diagrams of the board layout and connector pinouts help users correctly install components.
The BIOS section explains menu navigation, boot manager options, and how to save or discard changes. It also includes information on clearing CMOS, loading default values, and configuring advanced features like SATA and USB settings. This manual is written in Chinese.
| CPU socket | LGA1155 |
|---|---|
| Supported CPUs | Intel Xeon E3 series |
| Maximum memory | 32 GB DDR3 |
| Memory type | DDR3 1333/1066 MHz |
| ECC support | Yes |
| LAN controller | Intel 82579LM 10/100/1000 Mbps |
| PCI Express slots | 1 × PCIe x16 (run at x8), 2 × PCIe x8 |
| SATA ports | 6 × SATA 3 Gb/s |
| USB ports | 8 × USB 2.0 |
It uses an LGA1155 socket.
The board provides eight USB 2.0 ports.
It supports up to 32 GB of DDR3 memory.
Use the CLR_CMOS jumper to clear the CMOS settings.
