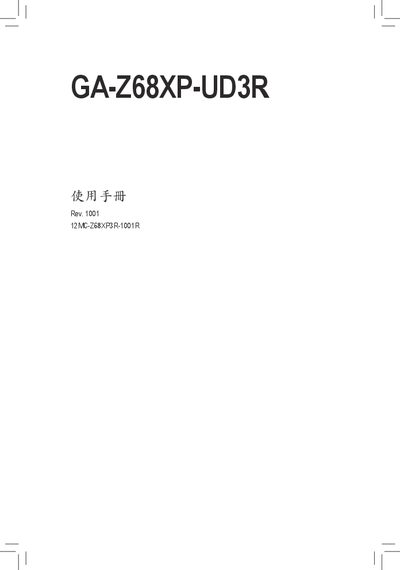

Gigabyte GA-Z68XP-UD3R Motherboard User Manual

This document is the user manual for the GA-Z68XP-UD3R motherboard, which covers topics such as installation, BIOS configuration, and driver installation.

Brand: Gigabyte
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 120
File format: PDF
File size: 31.3 MB
Published: 13 March, 2012
Updated: 29 September, 2023
Model: GA-Z68XP-UD3R
MD5 checksum: 800B8DA8443441BACD229B229C63BA35
PDF: Gigabyte GA-Z68XP-UD3R Motherboard User Manual PDF

About this manual

This manual provides step‑by‑step instructions for installing the GA‑Z68XP‑UD3R motherboard, including CPU, memory, cooling and expansion cards. It also covers BIOS configuration, system utilities, and troubleshooting procedures.

Additional sections detail the supplied accessories, hardware specifications, and Gigabyte’s worldwide service support contacts for Taiwan and other regions. This manual is written in Chinese.

What's inside

Hardware Installation
Pre‑Installation Checklist
Product Specifications
CPU and Memory Installation
BIOS Configuration
BIOS Update Methods
System Utilities (EasyTune, Q‑Share, Smart6)
Audio and SATA Configuration
Troubleshooting
Service Center Information

Specifications

CPU Socket	LGA1155
Supported Memory	DDR3 2133/1866/1600/1333/1066 MHz
PCI Express x16 Slots	1
USB 3.0 Ports	2
USB 2.0 Ports	14

Frequently asked questions

What is the model number of this motherboard?

The model number is GA‑Z68XP‑UD3R.

Which CPU socket does the GA‑Z68XP‑UD3R use?

It uses an LGA1155 socket.

How many USB 3.0 ports are provided on the board?

The motherboard provides two USB 3.0 ports.

Download PDF (31.3 MB)
