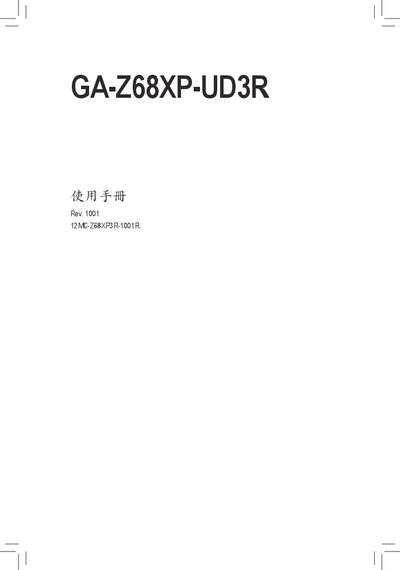

Gigabyte GA-Z68XP-UD3R User Manual

GA-Z68XP-UD3R User Manual is the user guide for GA-Z68XP-UD3R motherboard, which introduces the hardware installation, BIOS program settings and driver installation.

Brand: Gigabyte
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 120
File format: PDF
File size: 31.3 MB
Published: 13 March, 2012
Updated: 30 September, 2023
Model: GA-Z68XP-UD3R
MD5 checksum: 96E409C06383DAE61F6C0DA6B1A882E2
PDF: Gigabyte GA-Z68XP-UD3R User Manual PDF

About this manual

This manual guides users through hardware installation, including CPU, memory, and cooling fan mounting, as well as connecting accessories such as SATA drives and USB modules. Detailed BIOS configuration sections cover system settings, power management, and performance tuning.

Additional chapters describe software installation, driver updates, and troubleshooting procedures, while the appendix lists service center contacts and warranty information. This manual is written in Chinese.

What's inside

Hardware Installation
BIOS Setup
Software Installation
Accessories Checklist
Troubleshooting
Product Specifications
Service Center Information

Specifications

CPU Socket	LGA1155
Supported Memory Types	DDR3 2133/1866/1600/1333/1066 MHz
PCI Express Slots	x16, x1, x1

Frequently asked questions

What CPU socket does the GA‑Z68XP‑UD3R motherboard use?

It uses an LGA1155 socket.

How many USB 3.0 ports are provided on the board?

The board provides two USB 3.0 ports.

Where can I find Gigabyte’s service centers for this motherboard?

The appendix lists Gigabyte service centers in Taiwan with addresses and phone numbers.
