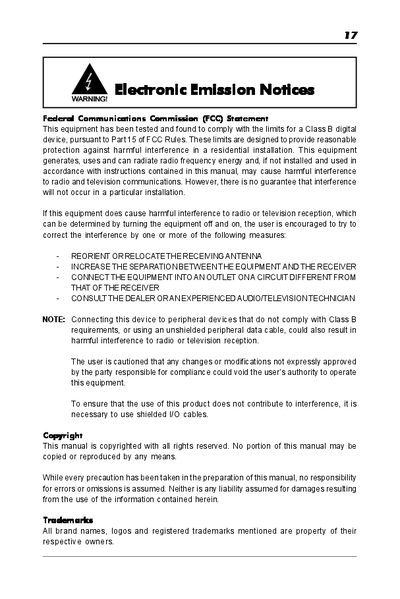

This document is about the electronic emission notices and Federal Communications Commission (FCC) statement of a certain brand and model of electronic equipment. The equipment has been tested and found to comply with the limits for a Class B digital device according to Part 15 of FCC Rules. The equipment generates and radiates radio frequency energy and may cause harmful interference to radio and television communications if not installed and used as instructed in the manual. If the equipment does cause interference, the user is encouraged to try reorienting or relocating the receiving antenna, increasing the separation between the equipment and the receiver, connecting the equipment to a different circuit than the receiver, or consulting the dealer or an experienced audio/television technician.
This manual provides detailed information on the VIA P4M266A/P4X266E motherboard, including hardware configuration, connector descriptions, jumper settings, and expansion slots. It also covers CPU and memory installation, BIOS features, power management, and integrated peripherals such as USB, AC97 audio, and optional LAN.
Additional sections describe password protection for BIOS setup, flash BIOS update procedures, and driver installation from the bundled utility CD. Safety notices, FCC compliance, and warranty statements are included at the beginning of the document.
| Chipset | VIA P4M266A/P4X266E |
|---|---|
| Supported Processors | Intel Celeron and Pentium 4 (478‑pin) |
| Processor Bus Frequency | 400 MHz / 533 MHz |
| VRM | VRM 9.0 on board |
| Memory Slots | 2 × 184‑pin DDR SDRAM sockets, up to 2 GB |
| Supported DDR Types | DDR200/266, 2.5 V |
The board provides six external USB ports, driven by three UHCI host controllers and one EHCI (USB 2.0) controller.
