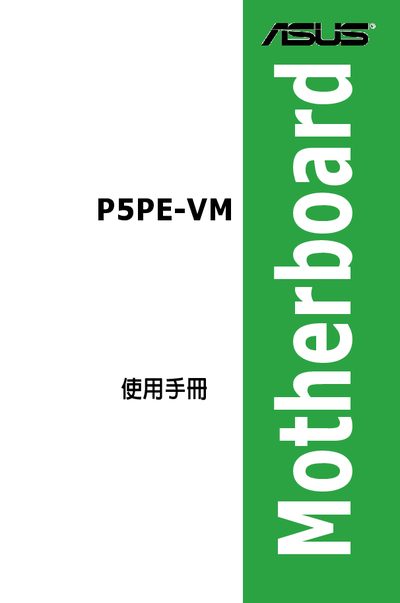

ASUS P5PE-VM Motherboard User Manual

P5PE-VM motherboard installation manual, introduces the characteristics and features of the motherboard, installation steps, BIOS settings and other content.

Brand: ASUS
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 78
File format: PDF
File size: 2.5 MB
Published: 09 March, 2012
Updated: 30 September, 2023
Model: P5PE-VM
MD5 checksum: 21C0A804C67A985E0AB3AAB2ABDA2E54
PDF: ASUS P5PE-VM Motherboard User Manual PDF

About this manual

This manual provides detailed safety instructions, installation steps, and configuration guidance for the ASUS P5PE-VM motherboard. It includes warnings, power‑off procedures, and component handling tips.

The document also explains BIOS configuration, jumper settings, and software utilities such as EZFlash and ASUS Update, helping users customize system settings and perform firmware upgrades. This manual is written in Chinese.

What's inside

Safety Precautions
Product Introduction
Motherboard Installation
BIOS Settings
Memory Configuration
PCI/AGP Slots
Software Support

Frequently asked questions

How should I safely power off the motherboard before working on it?

Disconnect the power cable before removing any components.

How can I update the BIOS on the P5PE-VM board?

Use the ASUS EZFlash utility to update the BIOS program.

What is the jumper mode setting and how is it configured?

Set the jumper to "JUmper Mode" as described in the manual.
