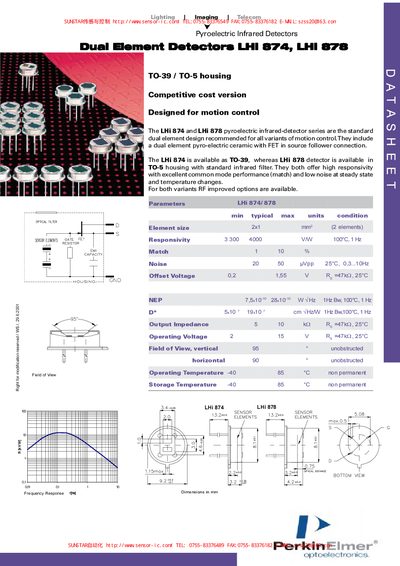

The LHi 874 and LHi 878 are pyroelectric infrared‑detector series designed for motion‑control systems. LHi 874 is supplied in a TO‑39 housing, while LHi 878 uses a TO‑5 housing with a standard infrared filter. Both detectors feature a dual‑element pyro‑electric ceramic with a source‑follower FET configuration.
Key specifications include a responsivity of 3300‑4000 V/MV at 100 °C, noise levels of 20‑50 µVpp (0.3‑10 Hz), operating voltage range of 2‑15 V, and output impedance of 10 kΩ. The detectors provide a vertical field of view of 95° and a horizontal field of view of 90°, and they operate reliably from –40 °C to 85 °C with storage temperatures from 0 °C to 85 °C.
| Responsivity | 3300‑4000 V/MV |
|---|---|
| Noise | 20‑50 µVpp (0.3‑10 Hz) |
| Operating Voltage | 2‑15 V |
| Vertical Field of View | 95° |
| Horizontal Field of View | 90° |
| Storage Temperature Range | 0 °C to 85 °C |
The LHi 874 is supplied in a TO‑39 housing, while the LHi 878 is supplied in a TO‑5 housing with a standard infrared filter.
The detectors have a responsivity of 3300 to 4000 V/MV measured at 100 °C and 1 Hz.
They operate from 2 V up to 15 V.
