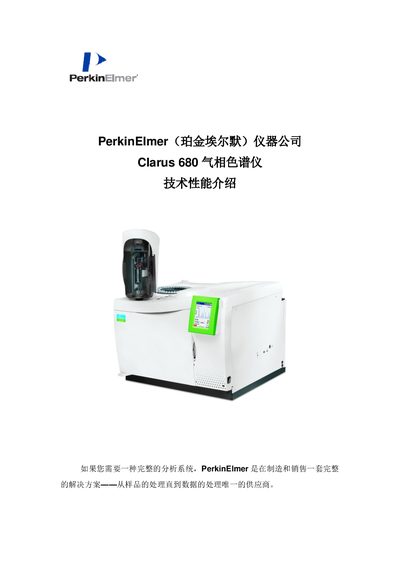

Technical overview of the PerkinElmer Clarus 680 gas chromatograph with dual‑channel, programmable flow control and fast temperature programming.
The Clarus 680 gas chromatograph from PerkinElmer features a dual‑channel design and a fully programmable pneumatic control (PPC) system, allowing precise pressure, flow‑rate and split‑ratio settings. Its touch‑screen interface supports multiple languages and provides intuitive graphics for method development and monitoring.
The instrument offers rapid temperature programming with a heating rate of up to 140 °C/min and cooling from 450 °C to 50 °C in under 2 minutes. A variety of detectors (FID, FPD, ECD, NPD, TCD, PID) can be configured, and the built‑in liquid auto‑sampler supports up to 108 samples and large‑volume injections. This manual is written in Chinese.
| Channel configuration | Dual‑channel |
|---|---|
| Programmable flow control | PPC system (pressure, flow, split ratio) |
| Maximum heating rate | 140 °C/min |
| Cooling performance | 450 °C → 50 °C in <2 min |
| Pressure range | 0‑100 psi/min |
| Flow range | 0‑100 mL/min |
| Line speed range | 0‑200 cm/s‑min |
| FID detector temperature | 100‑450 °C |
| FID detector LOD | < 3 × 10⁻¹² gC/sec |
| Maximum injection volume | 150 µL |
The Clarus 680 can heat at up to 140 °C per minute.
It cools from 450 °C to 50 °C in less than 2 minutes.
Pressure can be set from 0 to 100 psi/min and flow from 0 to 100 mL/min.
