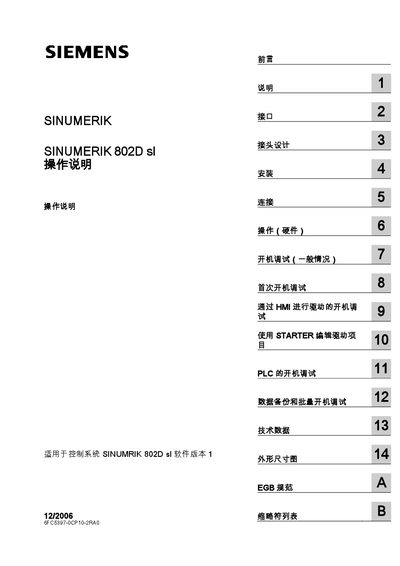

This manual provides comprehensive guidance for the SINUMERIK 802D sl control system. It begins with safety‑technology tips, defines warning symbols, and specifies the qualifications required for installation and service personnel. Subsequent sections describe the mechanical and electrical installation, grounding, and detailed connection diagrams for interfaces such as Ethernet, PROFIBUS‑DP, RS232, and the DRIVE‑CLiQ module.
Further chapters cover hardware operation, start‑up debugging procedures (general, first‑time, and via HMI), PLC configuration, data backup, and batch start‑up. Technical data, dimension drawings, and a list of abbreviations are provided for reference, along with contact information for Siemens technical support worldwide. This manual is written in Chinese.
A warning triangle indicates a safety warning that could cause death or serious injury; other symbols indicate caution or notice.
Only qualified professional personnel who meet safety‑technical standards may install, commission, and operate the system.
