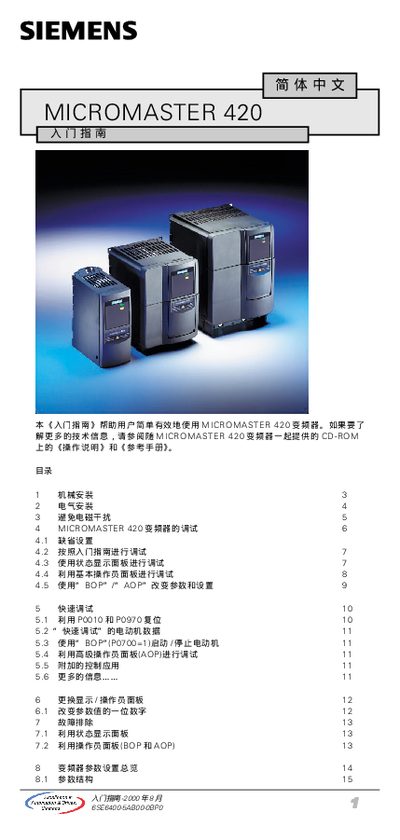

This Quick Start Guide helps users to use the MICROMASTER 420 drive in a simple and effective manner. For further technical information, please refer to the Operation Manual and the Reference Manual on the CD-ROM supplied with the MICROMASTER 420 drive.
The Getting Started Guide provides step‑by‑step instructions for mechanical and electrical installation of the MICROMASTER 420 inverter, safety warnings, and procedures to avoid electromagnetic interference. It also covers basic and advanced debugging using the status display panel, basic operator panel (BOP) and advanced operator panel (AOP).
Additional sections describe quick‑debug procedures, how to replace the display/operator panel, fault diagnosis using LEDs and panel codes, and an overview of the parameter structure with recommended default settings. This manual is written in Chinese.
| Overall dimensions (Version A) | 173 mm × 73 mm × 149 mm |
|---|---|
| Overall dimensions (Version B) | 202 mm × 149 mm × 172 mm |
| Overall dimensions (Version C) | 245 mm × 185 mm × 195 mm |
| Maximum motor speed | 3000 rpm at 50 Hz, 3600 rpm at 60 Hz |
| Ramp up/down time | 10 seconds |
| Quick‑debug activation parameter | P0010 = 1 |
Both the ramp‑up and ramp‑down times are set to 10 seconds by default.
Set parameter P0010 to 1 to enable quick debug, then follow the steps in section 5.1 (e.g., use P0970 to reset).
