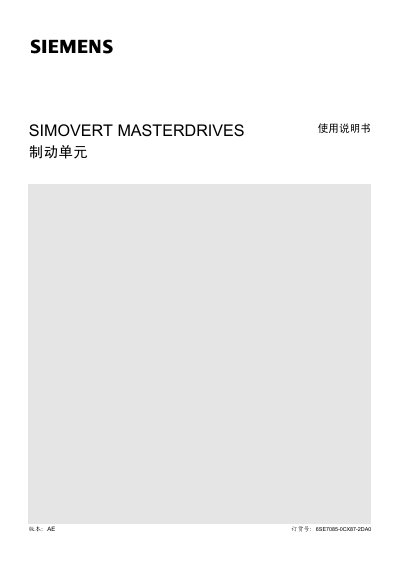

This manual introduces the features and characteristics of the SIMOVERT MASTERDRIVES brake unit of Siemens Electrical Drives Ltd., including product description, installation, wiring, brake resistance, monitoring, start-up, technical data, etc.
This manual provides detailed information for qualified personnel on the installation, wiring, and safe operation of the SIMOVERT MASTERDRIVES brake unit. It includes safety classifications, ESD handling guidelines, and procedures for connecting the brake unit to a drive system.
The document also lists the technical specifications of the brake unit, such as power rating options, dimensions, and recommended external brake resistors, and offers troubleshooting and monitoring guidance for proper performance. This manual is written in Chinese.
| Power rating (type S) | 5 kW – 10 kW (internal brake resistor) |
|---|---|
| Power rating (type A) | 10 kW – 20 kW (internal brake resistor) |
| Power rating (type B) | 100 kW – 200 kW (external brake resistor) |
| Package dimensions | 760 mm × 500 mm × 1350 mm |
| Weight (example 170 kW model) | ≈ 103 kg |
Wait at least 5 minutes after power removal because residual voltage may remain on the intermediate circuit capacitor.
