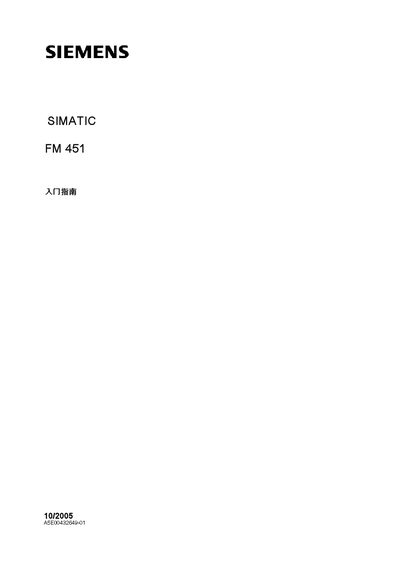

SIMATIC FM 451 Getting Started Guide is a user manual for the FM 451 module from Siemens. It introduces the hardware and software functions of the FM 451 module, as well as the debugging methods.
The guide introduces the FM 451 module, explains safety requirements and outlines the hardware needed for a typical setup. It walks the user through installation, wiring, configuration in SIMATIC Manager and basic debugging procedures.
Additional sections cover detailed programming of channel parameters, testing the module’s operation, integrating the FM 451 into a PLC project and diagnosing common errors. This manual is written in Chinese.
| Required hardware | S7‑400 station with power module and CPU |
|---|---|
| External power supply | 24 V DC |
| Channel used for motion | Channel 1 |
| Physical unit for positioning | mm (3 decimal places) |
Turn off the power, set the CPU mode selector to STOP, insert the FM 451 into the rack slot and tighten it, then connect the front connector.
Open the project in SIMATIC Manager, open the HW Config, add the FM 451 to the correct slot, set channel 1, then use the Test → Debug function to start the debugging screen.
A S7‑400 station with a power module and CPU, STEP 7 software, an external 24 V DC supply, an encoder, a driver, hardware limit switches and an emergency stop.
Error messages are shown in the “Error” display; use Test → Error Evaluation to view and correct the issues.
