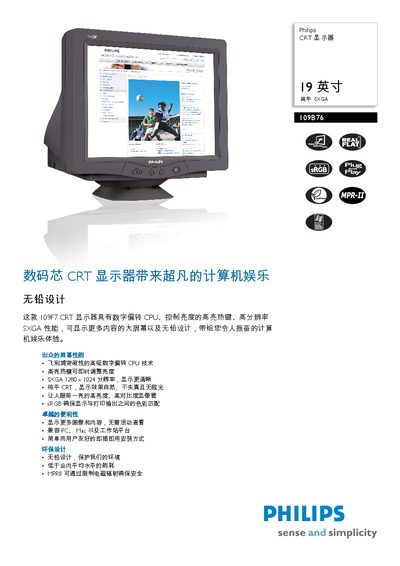

The document introduces a CRT monitor called 109F7, which features a digital deflection CPU, a high-brightness hotkey for controlling brightness, high-resolution SXGA performance, and a lead-free design. The monitor provides outstanding screen performance with Philips' breakthrough advanced digital deflection CPU technology and a high-brightness, high-contrast cathode ray tube. It also offers excellent convenience by displaying more images and content, being compatible with PC, Mac, and workstation platforms, and using a simple and user-friendly plug-and-play installation method. Additionally, the monitor features an environmentally friendly design with a lead-free design, low energy consumption below the industry average, and compliance with MPRII standards to ensure safety.
The Philips 109B76 is a 19‑inch CRT monitor with SXGA resolution (1280 × 1024) and high brightness and contrast. It supports multiple video modes, DDC 2B, and sRGB color matching, making it compatible with PC and Mac systems.
The manual includes detailed specifications, connectivity options, installation guidance, safety information, and accessory lists. It also provides power consumption, dimensions, weight, and operating temperature ranges for proper setup and use. This manual is written in Chinese.
| Native resolution | 1280 × 1024 (SXGA) |
|---|---|
| Maximum resolution | 1600 × 1200 @ 73 Hz |
| Refresh rate (native) | 85 Hz |
| Dot pitch | 0.25 mm |
| Input impedance | 75 Ω |
| Input signal level | 0.7 Vpp |
| Weight (unit only) | 20 kg |
| Operating temperature | 0 °C to 35 °C |
| Storage temperature | -25 °C to 65 °C |
It supports native SXGA 1280 × 1024 at 85 Hz and multiple lower resolutions up to 1600 × 1200 @ 73 Hz.
It has an AC power input and a video input (D‑sub) for connecting to PCs or Macs.
