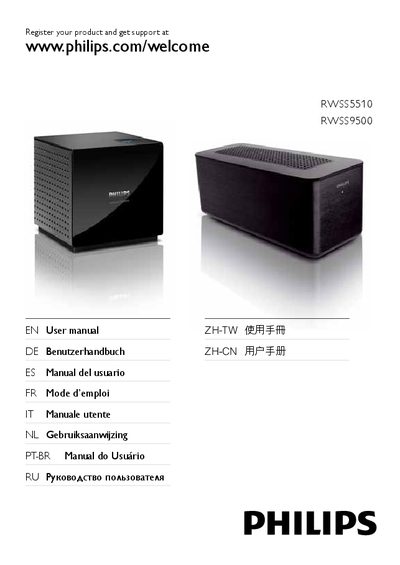

This document is the user manual for the Philips RWSS5510 and RWSS9500 models. The manual includes instructions on how to connect the product, troubleshooting tips, and product specifications.
This manual covers Philips' Wireless Rear Audio System models RWSS5510 and RWSS9500. It explains how to connect the wireless receiver, transmitter, and rear speakers to a home theater, and includes safety warnings and compliance information.
Key sections include the connection procedure, troubleshooting steps for no‑sound issues, detailed product specifications for each model, and guidelines for power supply, placement and disposal.
| Power supply rating (RWSS5510) | 110-240V, ~50-60 Hz |
|---|---|
| Total output power (RWSS5510) | 250 W (RMS) |
| Power consumption (RWSS5510) | 50 W |
| Standby power consumption (RWSS5510) | 0.45 W |
| Frequency response (RWSS5510) | 150 Hz ~ 20 kHz |
| Signal‑to‑Noise Ratio (RWSS5510) | 65 dB (A‑Weighted) |
| Distortion (RWSS5510) | 1 % |
| Dimensions (RWSS5510) | 126 × 131 × 126 mm |
| Weight (RWSS5510) | 11 kg |
| Power supply rating (RWSS9500) | 110-240V, ~50-60 Hz |
| Total output power (RWSS9500) | 300 W (RMS) |
| Power consumption (RWSS9500) | 40 W |
| Standby power consumption (RWSS9500) | 0.45 W |
| Frequency response (RWSS9500) | 150 Hz ~ 20 kHz |
| Signal‑to‑Noise Ratio (RWSS9500) | 65 dB (A‑Weighted) |
| Distortion (RWSS9500) | 1 % |
| Dimensions (RWSS9500) | 265 × 116 × 106 mm |
| Weight (RWSS9500) | 1.4 kg |
| Frequency response (Wireless transmitter) | 5.8 GHz |
| Dimensions (Wireless transmitter) | 55 × 53 × 33 mm |
| Weight (Wireless transmitter) | 0.05 kg |
Use a power supply that matches the voltage printed on the back or underside of the product.
Place the wireless receiver so that the line‑of‑sight to the home theater is not blocked by furniture, walls, or other objects.
