The Philips Webcam VGA CMOS SPC505NC is a high-definition webcam that supports 30 frames per second for smooth video, and comes with a multimedia headset that eliminates echo for a more fluid video chat.

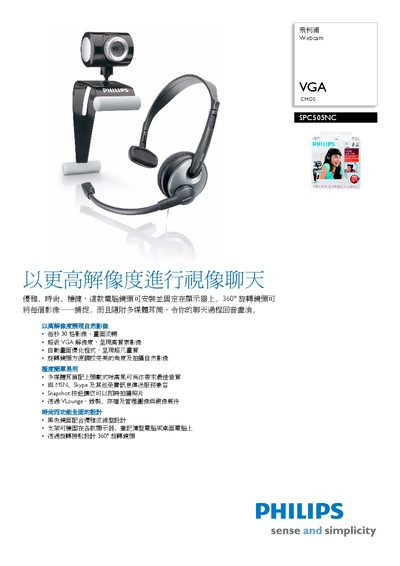

The manual describes the Philips SPC505NC webcam, a VGA‑resolution camera with a 360° rotating lens, built‑in microphone and headset support. It outlines key features such as automatic image optimization, snapshot capability, and compatibility with popular messaging applications like Skype, MSN Messenger and Yahoo! Messenger.
Technical specifications, system requirements, installation steps, and packaging information are included. The document also lists accessories, software bundles, and physical dimensions of the product and its outer box. This manual is written in Chinese.
| Image sensor | CMOS |
|---|---|
| Sensor resolution | VGA |
| White balance range | 2600‑7600 K |
| Maximum video resolution | VGA (640×480) |
| Capture resolution | VGA |
| Internal capture resolution | SVGA |
| Maximum frame rate | 30 fps |
| Color depth | 24‑bit |
| Dimensions (W×H×D) | 35 mm × 125 mm × 75 mm |
| Weight | 79 g |
The webcam captures video at VGA resolution (640×480) and can capture internally at SVGA resolution.
It requires a Pentium II 500 MHz processor, 128 MB RAM, and Windows 98, Windows 2000, or Windows XP.
