The AX FA14 electromagnetic flow converter in the AX F series is a user-friendly product that incorporates advanced features such as electrode adhesion diagnosis and a versatile display. It adopts a dual-frequency excitation method inherited from the ADMAG series, which provides high stability and fast response in flow measurement. Furthermore, an optional extended dual-frequency excitation method is available for more demanding applications.

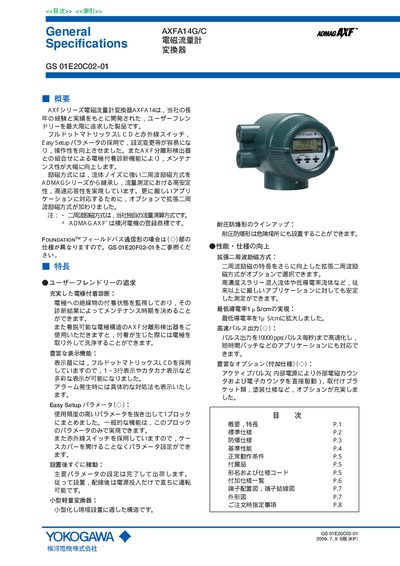

This manual describes the AXFA14 series electromagnetic flowmeter converter developed by Yokogawa. It highlights user‑friendly features such as a full‑dot matrix LCD, infrared switches, and Easy Setup parameters, as well as diagnostic functions for electrode fouling and optional extended two‑frequency excitation.
The document includes detailed specifications, wiring diagrams, mounting options, safety and explosion‑proof requirements, and optional accessories. It also outlines parameter settings, communication options (BRAIN, HART, fieldbus), and calibration procedures. This manual is written in Japanese.
| 電流出力 | 4‑20 mA DC |
|---|---|
| パルス出力レート | 0.0001‑10000 pps |
| 電源定格 (AC) | 100‑240 V AC, 50/60 Hz |
| 電源定格 (DC) | 24 V DC |
| 入力信号 (ステータス入力) | 無電圧接点, 2000 Ω以下 (ON), 100 kΩ以上 (OFF) |
| 耐圧防爆定格 | 250 V AC / 130 V DC |
The converter can output pulses up to 10 000 pps (pulses per second).
The device offers BRAIN and HART communication, as well as FOUNDATION fieldbus options.
Yes, it monitors electrode fouling and can indicate maintenance timing.
