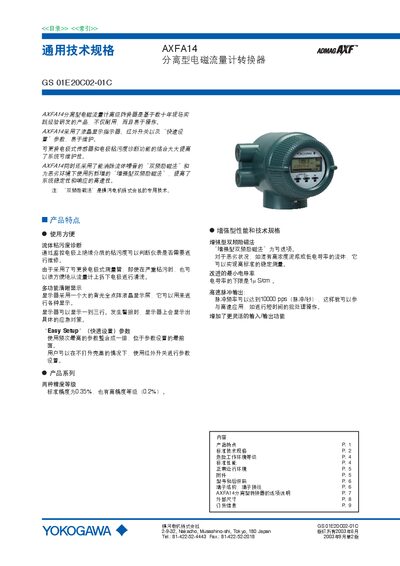

Yokogawa AXFA14 Electromagnetic Flowmeter Converter Manual
This manual describes the AXFA14 separated electromagnetic flowmeter converter, highlighting its LCD display, infrared switch, quick‑setup parameters, and dual‑frequency excitation methods for reduced fluid noise. It explains how to diagnose electrode fouling, replace electrode sensors, and configure the device without opening the housing.
The document includes technical specifications, wiring diagrams, communication options (HART/BRAIN), environmental ratings, safety guidelines, physical dimensions, and ordering information for optional accessories and cable assemblies. This manual is written in Chinese.
Yokogawa AXFA14 specifications
| Display | Full dot‑matrix LCD 32×132 pixels |
|---|---|
| Communication distance (twisted pair) | ≤ 1.5 km |
| Power supply (AC) | 100 ~ 240 V AC, 50/60 Hz |
| IP protection rating | IP67, NEMA 4X |
| Operating temperature range | -40 °C to +60 °C |
| Current output | 4 ~ 20 mA DC |
Source: Yokogawa AXFA14 Electromagnetic Flowmeter Converter Manual
