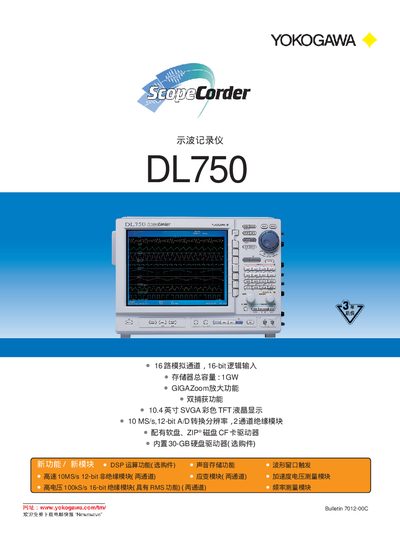

The DL750 oscilloscope recorder is the new generation of the 7012 series oscilloscope recorders. It features high speed (10MS/s), high precision (0.5%), large capacity (1GW), and can be used for various industrial tests and analysis.
The DL750 is an oscillographic recorder with up to 1 GW of memory, 16 analog channels, and a 10.4‑inch SVGA color TFT display. It supports high‑speed sampling up to 10 MS/s with 12‑bit resolution and offers dual‑capture for simultaneous high‑ and low‑speed recording.
The manual details module options, DSP processing channels, connection interfaces (USB, Ethernet, GP‑IB, RS‑232), and accessories such as probes and storage devices, providing guidance for setup, measurement, and data analysis. This manual is written in Chinese.
| Memory capacity | 1 GW |
|---|---|
| Analog channels | 16 |
| Logic input resolution | 16‑bit |
| Sampling rate | 10 MS/s, 12‑bit A/D |
| Display | 10.4‑inch SVGA color TFT LCD |
The recorder can store up to 1 GW of data.
It provides 16 analog channels.
The unit has a 10.4‑inch SVGA color TFT LCD screen.
