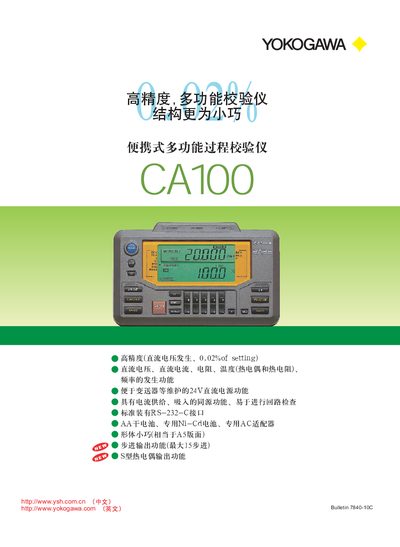

CA100 is a high-precision, multi-functional portable process calibrator with DC voltage, DC current, resistance, temperature (thermocouple and thermistor) and frequency generation functions, as well as 24V DC power supply function, current supply, absorption of the same source function, step output function (maximum 15 steps) and S type thermocouple output function.
The CA100 is a compact, lightweight multi‑function process test instrument that provides generation and measurement of DC voltage, DC current, resistance, temperature (thermocouple and RTD) and frequency, plus a 24 V DC power output. It is designed for field use in process industries, offering independent generation and measurement functions with a user‑friendly keypad layout.
The manual covers safety requirements, power options (AA batteries, Ni‑Cd battery pack, AC adapter), communication interfaces (RS‑232‑C), environmental limits, dimensions, and accessories. Detailed specifications for output ranges, accuracy, step‑wise output, and battery life are provided to aid calibration and maintenance tasks. This manual is written in Chinese.
| DC voltage generation accuracy | 0.02% of setting |
|---|---|
| Maximum step output | 15 steps |
| Output current (generation) | 10 mA |
| Battery type (optional) | 8 AA cells or Ni‑Cd pack |
| Power consumption (with AC adapter) | ≤55 VA |
| Dimensions (W×H×D) | 237 mm × 137 mm × 63 mm |
| Weight | ≈1.2 kg |
The step output can be divided into up to 15 small steps.
The DC voltage generation accuracy is 0.02 % of the set value.
