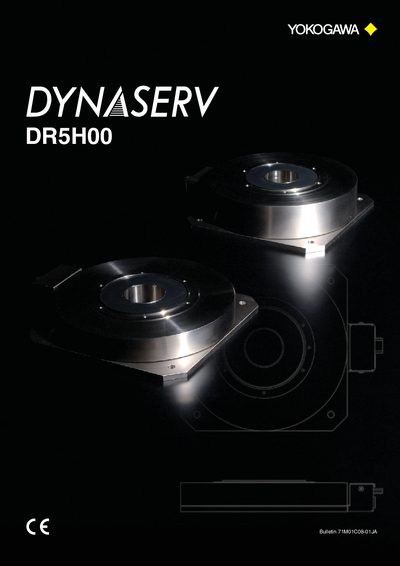

The DR5H00 is a thin, high‑precision, high‑torque direct‑drive motor designed for space‑constrained equipment such as LED inspection systems, optical disc manufacturing, and semiconductor production. It features an integrated hybrid magnetic circuit, built‑in encoder, and optional field‑network‑compatible driver.
The manual includes technical specifications, supported field networks (MECHATROLINK‑II, CC‑Link, PROFIBUS‑DP), configuration tools, and safety/compliance information to aid installation, operation, and maintenance. This manual is written in Japanese.
| Maximum Output Torque (10 N·m model) | 10 N·m |
|---|---|
| Maximum Output Torque (20 N·m model) | 20 N·m |
| Maximum Output Torque (40 N·m model) | 40 N·m |
| Maximum Speed | 3.6 rps |
| Absolute Position Accuracy | ≤0.4 µm |
The driver supports MECHATROLINK‑II, CC‑Link, and PROFIBUS‑DP.
The 20 N·m model delivers a maximum continuous torque of 20 N·m.
