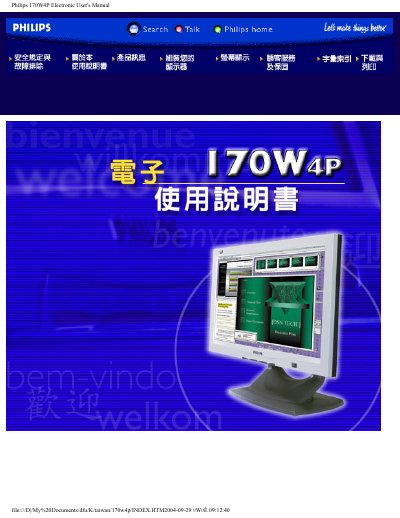

Philips 170W4P Electronic User's Manual introduces the features, installation, operation and other related information of the LCD display
This manual covers safety precautions, proper handling, and environmental requirements for the Philips 170W4P LCD monitor. It explains how to clean the screen safely, avoid electric shock, and protect the unit from heat, moisture, and vibration.
The guide also details installation procedures, display settings, power‑saving features, and technical specifications such as resolution, brightness, and power consumption. Warranty information and a glossary of terms are included for user reference. This manual is written in Chinese.
| Panel type | Thin‑film transistor (TFT) LCD |
|---|---|
| Screen size | 17.1" diagonal |
| Resolution | 1280 × 768 pixels |
| Pixel density | 0.291 mm × 0.291 mm |
| Contrast ratio | 350:1 (typical) |
| Brightness | 450 cd/m² (typical) |
| Response time | ≤ 25 ms (typical) |
| Vertical refresh rate | 56 – 75 Hz |
| Power consumption | 35 W (typical) |
| Dimensions (W×H×D) | 417 × 374 × 180 mm (including stand) |
| Weight | 6.0 kg |
| Tilt/rotation range | -5° to +35° tilt, ±175° rotation |
| Operating temperature | 5 °C – 35 °C |
| Operating humidity | 20 % – 80 % RH |
The monitor should be used in temperatures between 5 °C and 35 °C and relative humidity between 20 % and 80 %.
Typical power consumption is 35 W.
The monitor supports up to 1280 × 768 at 75 Hz.
