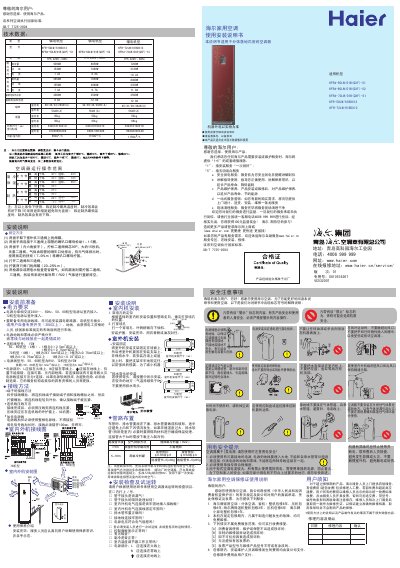

Haier air conditioner manual, introduces the use method, safety precautions and installation instructions of air conditioner
The manual begins with safety precautions, warning users not to pour water on the indoor unit, avoid placing objects on the cabinet, keep the inlet and outlet clear, and ensure proper grounding and a dedicated power socket. It also outlines the required power specifications (220 V~ 50 Hz single‑phase) and the need for qualified personnel to perform the wiring.
Installation instructions detail the preparation of the indoor and outdoor units, pipe routing, connection of refrigerant lines, and the complete wiring diagram. It includes step‑by‑step guidance for securing the units, connecting power and control lines, checking for leaks, and performing a test run. The guide finishes with usage tips, maintenance procedures, and troubleshooting advice. This manual is written in Chinese.
| Indoor unit dimensions | 530 × 1810 × 310 mm |
|---|---|
| Power supply | 220 V~ 50 Hz |
Connect the L (live) wire to the fire line, the N (neutral) wire to the neutral line, and the ground wire to the earth line, keeping the ground and neutral separate.
