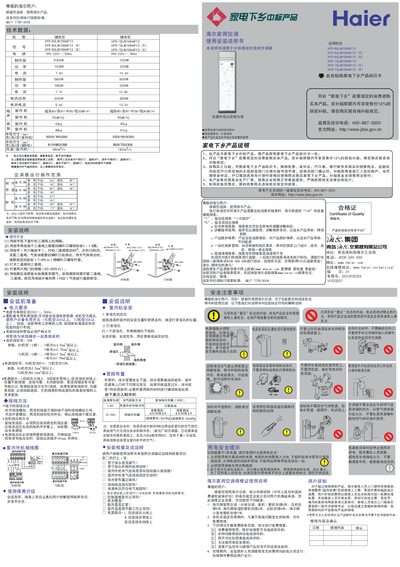

This is the instruction manual for Haier KFR-50LW/06HAF13 and KFR-72LW/06HAF13 household air conditioners.
The manual begins with safety warnings and power requirements, then details the installation steps for indoor and outdoor units, wiring diagrams, and recommended electrical connections. It also covers the proper positioning of the indoor and outdoor units, pipe routing, and drainage setup.
The second part explains the operation of the remote controller, including timer, strong/quiet modes, auxiliary heating, negative‑ion function, cleaning and filter maintenance, and troubleshooting tips. Frequently asked questions address common setup and usage issues. This manual is written in Chinese.
| Cooling capacity | 5200W |
|---|---|
| Heating capacity | 5800W |
| Power consumption (cooling) | 1625W |
| Power consumption (heating) | 1650W |
| Indoor unit weight | 42 kg |
| Outdoor unit weight | 48 kg |
| Indoor noise level | 43 dB(A) (high) |
| Outdoor noise level | 52 dB(A) |
Remove the filter, wash it with water or use a vacuum cleaner; avoid water hotter than 40 °C.
The unit must be connected to a single‑phase 220 V / 50 Hz supply with a dedicated circuit and a reliable earth connection; neutral and earth must not be tied together.
