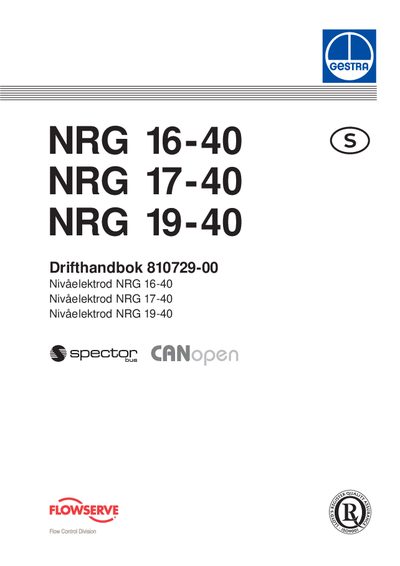

GESTRA NRG 16-40/17-40/19-40 Level Electrode User Manual

This is a user manual for NRG 16-40 NRG 17-40 NRG 19-40

Brand: GESTRA
Category: sensor
Document type: User Manual
Language: SV
Pages: 24
File format: PDF
File size: 388 KB
Published: 24 February, 2012
Updated: 30 September, 2023
MD5 checksum: B6951BE8F283096B11E99D7F795FC0F0
PDF: GESTRA NRG 16-40/17-40/19-40 Level Electrode User Manual PDF

About this manual

This manual covers the NRG series level electrodes (NRG 16‑40, NRG 17‑40, NRG 19‑40) used for level monitoring in conductive media. It describes the system architecture, component parts, and technical data required for proper integration with the NRS 1‑40 control unit via CANopen.

The document includes important safety instructions, qualified‑personnel installation requirements, detailed wiring schematics, step‑by‑step mounting procedures, commissioning, and maintenance checklists. Appendices provide part lists, NOD‑ID configuration examples, and conformity declarations. This manual is written in Swedish.

What's inside

Safety Instructions
Installation Guide
Electrical Connection
System Description
Technical Data
Component Overview
Operation
Maintenance
Appendices

Specifications

Maximum operating temperature	70 °C
Termination resistance	120 Ω
Sealing ring size	D 27 × 32 mm (DIN 7603‑1.4301)
Cable gland size	M 16 × 1.5 mm, M 20 × 1.5 mm

Frequently asked questions

Who is allowed to install the NRG electrodes?

The electrodes may only be installed by qualified personnel.
