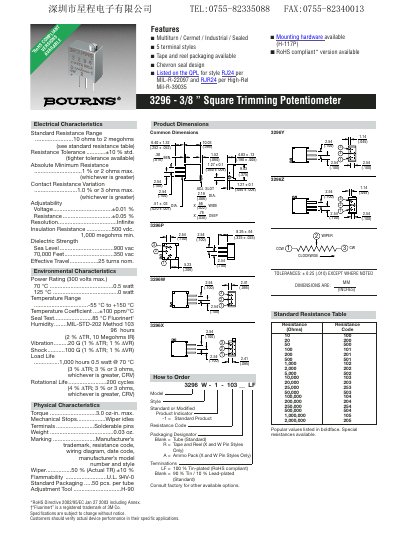

3296 - 3/8 ” Square Trimming Potentiometer features multiturn/cermet/industrial/sealed, 5 terminal styles, tape and reel packaging available, Chevron seal design, listed on the QPL for style RJ24 per MIL-R-22097 and RJR24 per High-Rel Mil-R-39035, mounting hardware available (H-117P), RoHS compliant* version available
The 3296 series is a multiturn, cermet, industrial‑grade, sealed square trimming potentiometer available in five terminal styles and tape‑and‑reel packaging. It features a chevron seal design, RoHS‑compliant versions, and optional mounting hardware.
The document lists detailed electrical characteristics such as resistance range, tolerance, power rating, and insulation resistance, as well as mechanical data like torque, weight, and dimensions, and environmental limits for temperature, humidity, vibration and shock.
| Standard Resistance Range | 10 Ω to 2 MΩ |
|---|---|
| Resistance Tolerance | ±10 % (standard) |
| Power Rating (300 V max.) at 70 °C | 0.5 W |
| Temperature Range | -55 °C to +150 °C |
| Insulation Resistance | 500 VDC, 1 000 MΩ min. |
| Torque | 3.0 oz‑in max |
| Weight | 0.03 oz |
The standard resistance tolerance is ±10 %, with tighter tolerances available on request.
The potentiometer can dissipate 0.5 W at 70 °C.
It is rated for operation from –55 °C up to +150 °C.
The minimum insulation resistance is 500 VDC with 1 000 MΩ measured.
