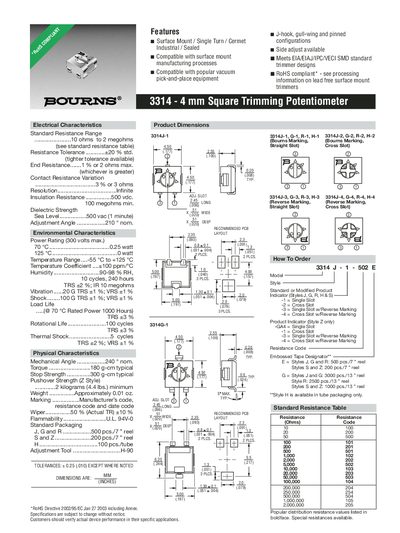

This document provides information about RoHS Directive 2002/95/EC Jan 27 2003, as well as the electrical characteristics, environmental characteristics, and physical characteristics of the 3314 - 4 mm Square Trimming Potentiometer.
The Bourns 3314 series is a 4 mm square surface‑mount trimming potentiometer offered in single‑turn, cermet construction. It meets EIA/EIAJ‑APC/VECI standards, is RoHS compliant and is compatible with standard pick‑and‑place equipment.
The datasheet lists electrical characteristics such as resistance range, tolerance and power rating, as well as mechanical dimensions, packaging options (reel and tube) and how‑to‑order information for the various style codes (J, G, R, H, S, Z).
| Standard Resistance Range | 10 Ω to 2 MΩ |
|---|---|
| Resistance Tolerance | +20 % std. |
| End Resistance | 1 % or 2 Ω max. |
| Contact Resistance Variation | 3 % or 3 Ω |
| Insulation Resistance | ≥100 MΩ |
| Power Rating (300 V max) | 0.25 W |
| Temperature Coefficient | 100 ppm/°C |
| Vibration | 20 G |
| Shock | 100 G |
| Weight | ≈0.01 oz |
It ranges from 10 Ω to 2 MΩ.
It is offered in 500 pcs/7" reel, 200 pcs/7" reel, and 100 pcs/tube.
The device is rated at 0.25 W (300 V max).
