This product is a 3296 type multi-turn, cermet, industrial, sealed potentiometer. The product has 5 terminal styles, tape and reel packaging, Chevron seal design, listed on the QPL for style RJ24 per MIL-R-22097 and RJR24 per High-Rel Mil-R-39035 standard, mounting hardware (H-117P), lead free version available, etc.

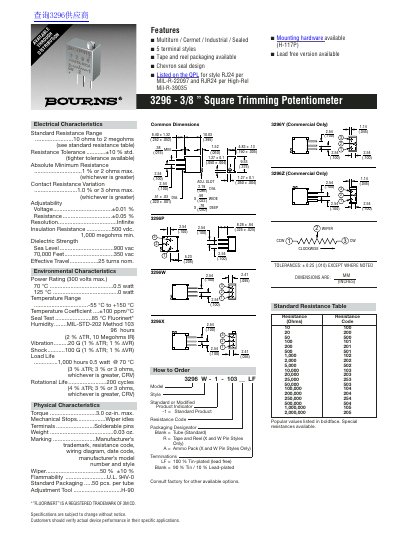

The Bourns 3296 series is a 3/8" square trimming potentiometer offered in multiple terminal styles and mounting options. It features a multiturn cermet element, chevron‑seal design, and is listed on the QPL for MIL‑R‑22097 and MIL‑R‑39035. Lead‑free and leaded terminations are available, as well as tape‑and‑reel or tube packaging.
The datasheet provides detailed electrical characteristics such as resistance range (10 Ω‑2 MΩ), tolerance (±10 % standard), insulation resistance (1 000 MΩ at 500 VDC), and environmental limits (‑55 °C to +150 °C). Mechanical data include torque (3.0 oz‑in max), weight (0.03 oz), and dimensions for each style.
| Standard Resistance Range | 10 Ω to 2 MΩ |
|---|---|
| Resistance Tolerance | ±10 % (standard) |
| Insulation Resistance | ≥ 1 000 MΩ at 500 VDC |
| Dielectric Strength (Sea Level) | 900 V AC |
| Temperature Range | ‑55 °C to +150 °C |
| Power Rating (70 °C) | 0.5 W |
| Torque (max) | 3.0 oz‑in |
| Weight | 0.03 oz |
The standard tolerance is ±10 % (tighter tolerances are available on request).
It operates from –55 °C up to +150 °C.
The effective travel is 25 turns nominal.
