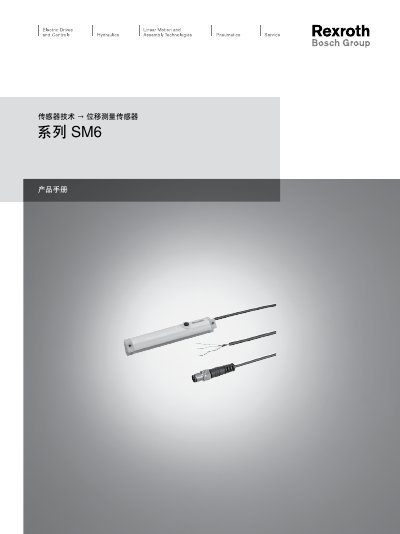

This document introduces the features and characteristics of the displacement measurement sensor series SM6 in Bosch Rexroth AG's sensor technology, including 6mm groove, with cable, tinned exposed core, etc., with a measurement range of 32-256mm.
This guide describes the SM6 series displacement measurement sensor, including its mechanical design, cable options and mounting accessories. It is intended for use in pneumatic systems to measure linear displacement.
Key technical specifications such as temperature range, IP protection, output signals and performance parameters are listed, along with wiring diagrams and safety notes. Contact details for Bosch Rexroth worldwide offices are provided at the end of the document. This manual is written in Chinese.
| Operating Temperature Range | -20 °C to +70 °C |
|---|---|
| Protection Rating | IP67 |
| Output Signal | 1× current, 1× voltage |
| Rated Current (ON) | < 20 mA |
| Scan Interval | 0.5 ms |
| Resolution | 0.05 mm |
| Repeatability | 0.1 mm |
| Linearity | 0.3 mm |
| Maximum Scan Speed | 3 m/s |
| LED Status Indicator | Yellow |
| Vibration Resistance | 10‑55 Hz, 1 mm |
| Impact Resistance | 30 g / 11 ms |
The sensor can operate from –20 °C to +70 °C.
The sensor has an IP67 protection rating.
It provides one current output and one voltage output.
The scan interval is 0.5 ms.
