National ADC082S051 2‑Channel 500 kSPS 8‑Bit A/D Converter Datasheet

The ADC082S051 is a low-power, two-channel CMOS 8-bit analog-to-digital converter (ADC) with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC082S051 is fully specified over a sample rate range of 200 kSPS to 500 kSPS. The converter is based on a successive-approximation register architecture with an internal track-and-hold circuit. It can be configured to accept one or two input signals at inputs IN1 and IN2. The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE, and many common DSP serial interfaces. The ADC082S051 operates with a single supply that can range from +2.7V to +5.25V. Normal power consumption using a +3V or +5V supply is 2.2 mW and 7.1 mW, respectively. The power-down feature reduces the power consumption to just 0.12 µW using a +3V supply, or 0.35 µW using a +5V supply. The ADC082S051 is packaged in an 8-lead MSOP package. Operation over the industrial temperature range of −40˚C to +85˚C is guaranteed.

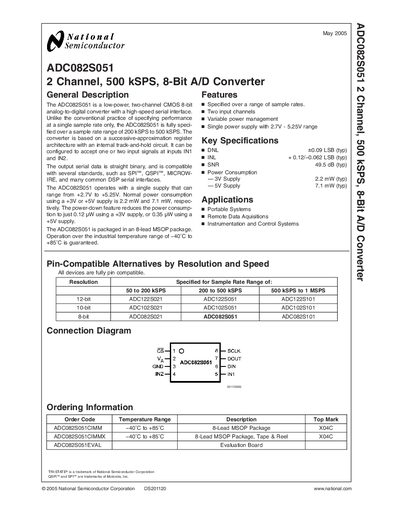

National ADC082S051 2‑Channel 500 kSPS 8‑Bit A/D Converter Datasheet - cover page
Brand
National Semiconductor
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
19
File format
PDF
File size
931 KB
Published
11 February, 2012
Updated
30 September, 2023
MD5 checksum
DAD65E12ED8ECD9D7DAF31B60CF720E7

About this manual

The ADC082S051 is a low‑power, two‑channel CMOS 8‑bit analog‑to‑digital converter with a high‑speed serial interface. It operates over a sample‑rate range of 200 kSPS to 500 kSPS, accepts one or two analog inputs (IN1, IN2), and provides straight‑binary output compatible with SPI, QSPI and other DSP interfaces. The device runs from a single supply of +2.7 V to +5.25 V, consuming 2.2 mW (3 V) or 7.1 mW (5 V) in normal mode and as little as 0.12 µW (3 V) or 0.35 µW (5 V) in power‑down.

Typical applications include portable systems, remote data acquisition, and instrumentation/control. The ADC features internal track‑and‑hold, low DNL (±0.09 LSB) and INL (+0.12/‑0.062 LSB), 49.5 dB SNR, and is packaged in an 8‑lead MSOP that operates from –40 °C to +85 °C.

What's inside

  • General Description
  • Pin Descriptions
  • Absolute Maximum Ratings
  • Electrical Characteristics
  • Timing Specifications
  • Specification Definitions
  • Typical Performance Characteristics
  • Applications Information
  • Physical Dimensions

Specifications

Resolution8 bits
Sample Rate Range200 kSPS – 500 kSPS
Supply Voltage+2.7 V to +5.25 V
Power Consumption (normal, 5 V)7.1 mW (max)
Power Consumption (power‑down, 3 V)0.12 µW
Differential Non‑Linearity (DNL)±0.09 LSB (typ)
Integral Non‑Linearity (INL)+0.12/‑0.062 LSB (typ)
Signal‑to‑Noise Ratio (SNR)49.5 dB (typ)
Package8‑lead MSOP
Operating Temperature Range‑40 °C to +85 °C

Frequently asked questions

What is the operating temperature range?

The device operates from –40 °C up to +85 °C.

What is the power‑down current consumption?

In power‑down mode the ADC draws 0.12 µW at a +3 V supply and 0.35 µW at a +5 V supply.
