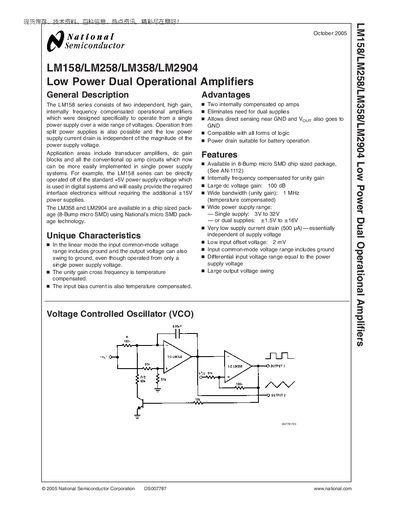

LM158/LM258/LM358/LM2904 are low power dual operational amplifiers designed for single power supply systems. They have high gain and internal frequency compensation, and can be used in applications such as transducer amplifiers and DC gain blocks.
The LM158 series consists of two independent, high‑gain, internally frequency‑compensated operational amplifiers designed for single‑supply operation over a wide voltage range. They are suitable for transducer amplifiers, gain blocks, and other conventional op‑amp circuits, and can operate directly from a standard +5 V supply.
The document lists absolute maximum ratings, electrical characteristics, typical performance curves, packaging dimensions, and application hints such as biasing, load handling, and short‑circuit protection. Physical dimensions for the 8‑bump micro SMD package are also provided, along with compliance and life‑support policy statements.
| Supply voltage range (single supply) | 3 V to 32 V |
|---|---|
| Supply voltage range (dual supplies) | +1.5 V to +16 V |
| Input offset voltage (typical) | 2 mV |
| DC voltage gain | 100 dB |
The LM158 series can operate from a single supply voltage up to 32 V.
Yes, the LM158 series is designed to operate directly from a +5 V single‑supply voltage.
They are available in an 8‑bump micro SMD chip‑sized package.
