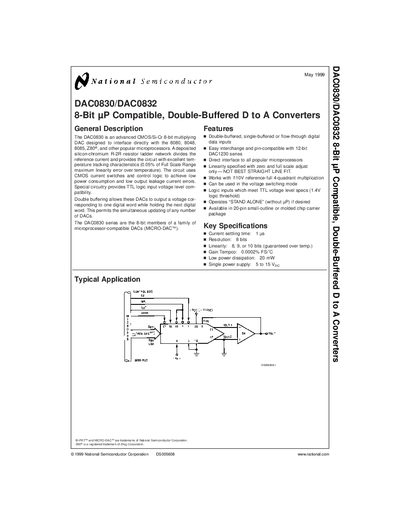

This is a PDF file about DAC0830/DAC0832 8-bit μP compatible double-buffered D to A converters
The DAC0830 and DAC0832 are 8‑bit CMOS/Si‑Cr multiplying DACs designed for direct interfacing with popular microprocessors such as the 8080, 8048, 8085, and Z80. They feature a deposited silicon‑chromium R‑2R ladder, double‑buffered operation, and TTL‑compatible logic inputs, allowing simultaneous updating of multiple devices.
The document details absolute maximum ratings, electrical characteristics, pin definitions, and typical performance data. It also includes application hints, package dimensions, and a life‑support policy notice. All specifications are presented with tested limits and typical values for design reference.
| Resolution | 8 bits |
|---|---|
| Current Settling Time | 1 ps |
| Low Power Dissipation | 20 mW |
| Supply Voltage | 5 to 15 V |
| Gain Temperature Coefficient | 0.0002% FS/°C |
| Package Options | 20‑pin small‑outline or molded chip carrier |
The converters have an 8‑bit resolution.
They operate from a single supply of 5 V to 15 V.
The current settling time is specified as 1 ps.
The low power dissipation is about 20 mW.
