The LM158/LM258/LM358/LM2904 Low Power Dual Operational Amplifiers are two independent, high gain, internally frequency compensated operational amplifiers specifically designed to operate from a single power supply over a wide range of voltages.
The LM158 series consists of two independent, high‑gain, internally frequency‑compensated operational amplifiers designed for single‑supply operation over a wide voltage range. They are suitable for transducer amplifiers, gain blocks, and other conventional op‑amp circuits, and can operate directly from a standard +5 V supply.

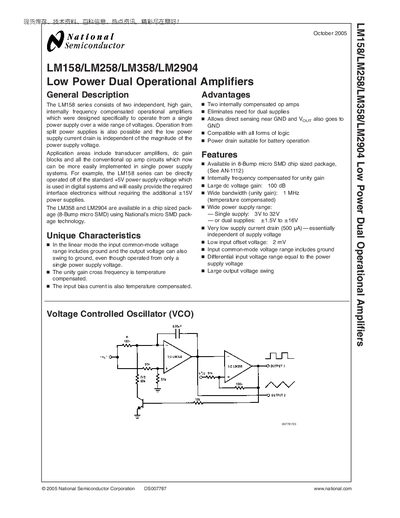

The document provides absolute maximum ratings, detailed electrical characteristics, typical performance curves, application hints, and physical dimensions for the LM158, LM258, LM358, and LM2904 devices, including the 8‑Bump micro SMD package option.
| Single‑supply voltage range | 3 V to 32 V |
|---|---|
| Supply current drain | 500 µA (typical) |
| Input offset voltage | 2 mV |
| DC voltage gain | 100 dB |
| Package type | 8‑Bump micro SMD |
The devices can operate from a single supply voltage up to 32 V.
Yes, the LM158 series can be directly operated from a +5 V supply.
The typical supply current drain is about 500 µA and is essentially independent of the supply voltage.
Both devices are offered in an 8‑Bump micro SMD chip‑sized package.
