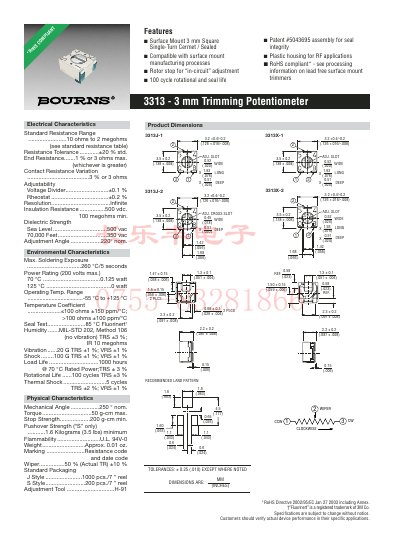

3313-3mm trimming potentiometer electrical characteristics, environmental characteristics, physical characteristics
The 3313 series is a 3 mm square, single‑turn trimming potentiometer designed for surface‑mount applications. It offers a wide resistance range, robust mechanical characteristics, and is RoHS compliant.
Key features include a 220° adjustment angle, high insulation resistance, and a sealed plastic housing suitable for RF and high‑temperature environments.
| Standard Resistance Range | 10 Ω to 2 MΩ |
|---|---|
| Resistance Tolerance | ±20 % (standard) |
| End Resistance | 1 % or 3 Ω max |
| Adjustment Angle | 220° nominal |
| Maximum Soldering Exposure | 260 °C for 5 s |
| Power Rating (200 V max.) | 0.125 W at 70 °C, 0 W at 125 °C |
| Operating Temperature Range | -55 °C to +125 °C |
It ranges from 10 Ω to 2 MΩ.
The device operates from –55 °C up to +125 °C.
The nominal adjustment angle is 220°.
