Panasonic WR6161K-803 20A HID relay is a distribution board relay with rated output side 20A 300V AC and input side 0.35A 24V AC.
The WR6161K-803 is a 20 A illumination control system designed for distribution panels. It supports various lamp loads including resistive, inductive, incandescent, fluorescent, and HID lamps. The device includes a single‑pole relay and auxiliary contacts for integration into lighting circuits.

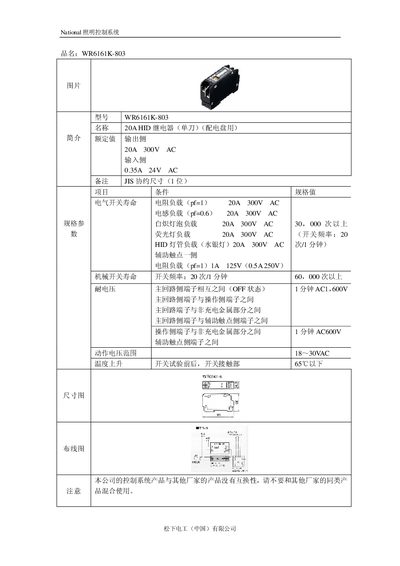

The sheet lists key electrical parameters such as rated current, voltage withstand, switching frequency, and mechanical life. It also shows wiring diagrams and dimensional drawings, and warns that the system is not interchangeable with products from other manufacturers. This manual is written in Chinese.
| Output side rated current | 20 A @ 300 V AC |
|---|---|
| Input side rated current | 0.35 A @ 24 V AC |
| Switching frequency | 20 times per minute |
| Voltage withstand (main circuit terminals) | 1 600 V AC for 1 min |
| Operating voltage range | 18 ~ 30 VAC |
The output side is rated for 20 A at 300 V AC.
It accepts 0.35 A at 24 V AC on the input side.
The terminals can withstand up to 1 600 V AC for one minute.
