The AXIS M31-R network camera series is a miniature, rugged network camera designed for applications in vehicles such as buses, trains, subways and ambulances. This camera is available in SVGA and 1MP/HDTV 720p resolutions and can adapt to quickly changing light conditions in order to maintain high quality images. Additionally, this camera features sequential scan technology for perfectly clear images of moving objects.
The Axis M31-R series includes rugged network cameras designed for mobile surveillance on buses, trains, subways, and emergency vehicles. The series offers models M3113-R with SVGA resolution and M3114-R with 1 MP/720p resolution, both featuring a fixed 2.9 mm lens and advanced image processing.

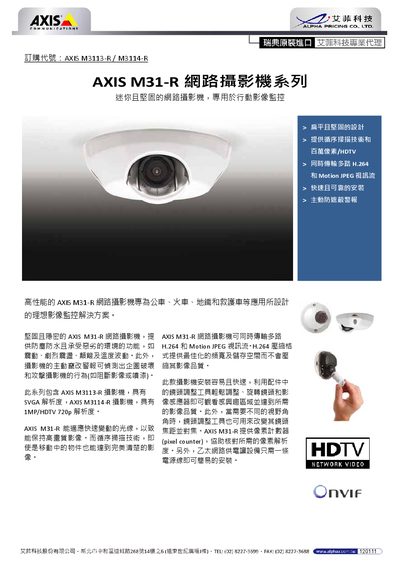

The cameras support PoE power (IEEE 802.3af Class 1, up to 3.2 W), provide H.264 and Motion JPEG video streams, and meet high environmental standards (IP66/IP67, NEMA 4X, IK08). Installation is simplified with a single Ethernet cable for power and data, and the manuals include tools and accessories for mounting and adjustment. This manual is written in Chinese.
| Resolution (M3113-R) | SVGA (800×600) |
|---|---|
| Resolution (M3114-R) | 1 MP / 720p |
| Lens | Fixed 2.9 mm |
| Power | PoE IEEE 802.3af Class 1, max 3.2 W |
| Weight | 250 g |
| IP Rating | IP66 / IP67 |
| NEMA Rating | NEMA 4X |
| Impact Protection | IK08 |
| Video Formats | H.264, Motion JPEG |
| Network Interface | RJ‑45 10BASE‑T / 100BASE‑TX |
The camera can output video streams in H.264 and Motion JPEG formats.
It uses Power over Ethernet (IEEE 802.3af Class 1) with a maximum consumption of 3.2 W.
Both models come with a fixed 2.9 mm lens.
