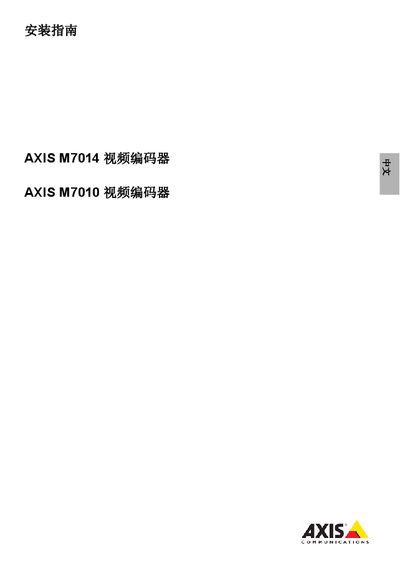

This installation guide introduces how to connect and install the AXIS M7014/M7010 video encoder.
This guide provides step‑by‑step instructions for installing the Axis M7014 and M7010 video encoders in a LAN environment. It covers unpacking, hardware overview, mounting options for wall or rack, power connections (DC or PoE), and cable routing.
The document also details network setup, including IP address assignment, password configuration, and how to reset the devices to factory defaults. Legal, safety, EMC, RoHS, and WEEE considerations are included to ensure compliant installation. This manual is written in Chinese.
| Dimensions (M7014) | 37 mm × 109 mm × 172 mm |
|---|---|
| Weight (M7014) | 570 g (1.27 lb) |
| Dimensions (M7010) | 45 mm × 440 mm × 165 mm |
| Weight (M7010) | 2540 g (5.82 lb) |
| Battery type | 3.0 V CR2032 lithium |
| Default IP (M7014) | 192.168.0.90 |
The encoder uses a 3.0 V CR2032 lithium battery that can operate for at least five years under normal conditions.
The four video input groups use 192.168.0.90, 192.168.0.91, 192.168.0.92 and 192.168.0.93 as their default IP addresses.
