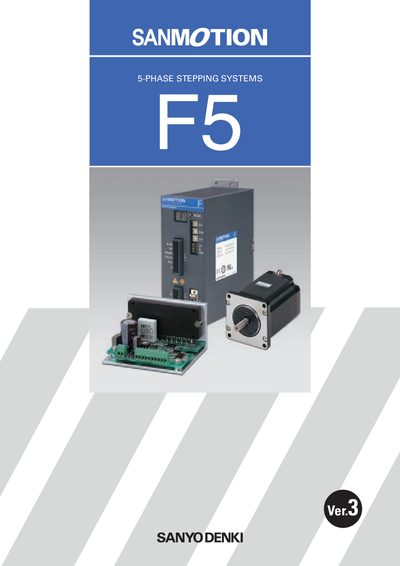

This document introduces 5-phase stepping system F series driver, including features and characteristics
The Sanyo Denki F series provides 5‑phase stepping drivers and motors designed for low vibration, microstepping, and built‑in positioning functions. The catalog details three control methods—PLC I/O, RS‑485 serial communication, and pulse generator—plus optional low‑backlash, harmonic, and spur gear reductions.
Standard and CE/UL models are offered with various motor flange sizes, optional electromagnetic brakes, and bundled connectors. Technical data such as power source voltage, winding current, and step‑angle resolution are listed, along with optional cables and accessories for industrial applications.
| Power source voltage (standard model) | 100V AC |
|---|---|
| Winding current (standard model) | 0.75A/phase |
| Motor model number | 103F7851-7041 |
| Input voltage (DC model) | DC24V |
| Step angle resolution | 0.72 to 0.00288 degrees/pulse (1/250 divisions) |
The F series offers three control methods: PLC I/O, RS‑485 serial communication, and pulse generator input.
The standard model uses a 100V AC power source.
