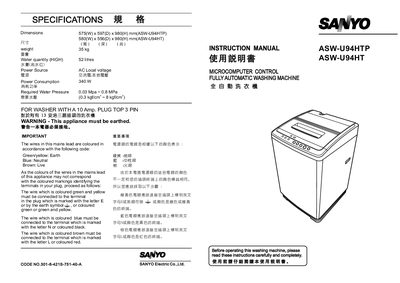

This manual covers safety precautions, proper wiring, and installation of the Sanyo ASW-U94HT fully‑automatic washing machine. It explains how to connect the power plug, attach the water supply hose with the "Magic" hose joint, and install the drain hose.
The guide also describes the control panel functions, washing programs, water‑level settings, child‑lock operation, detergent and load recommendations, and basic troubleshooting tips.
| Dimensions (W×D×H) | 580 mm × 556 mm × 980 mm |
|---|---|
| Capacity | 52 L |
| Required Water Pressure | 0.03 MPa ~ 0.8 MPa |
| Power Plug | 10 A, 3‑pin |
| Supply Voltage | AC local voltage |
The machine requires a water pressure between 0.03 MPa and 0.8 MPa.
Use a 10 A, 3‑pin plug and ensure the appliance is earthed.
Loosen the four screws, slide the joint onto the faucet, tighten the screws, and then attach the male and female couplers as shown.
Press SELECT until the WASH light flashes, then press the WATER LEVEL button to choose the desired level and press SET.
