This manual details the specifications of the CE14SA4 CE14SA4R (Russia) color television, including power supply, color system, television system, channel coverage, video IF, antenna input impedance, external interfaces, sound output, speaker, dimensions, and weight

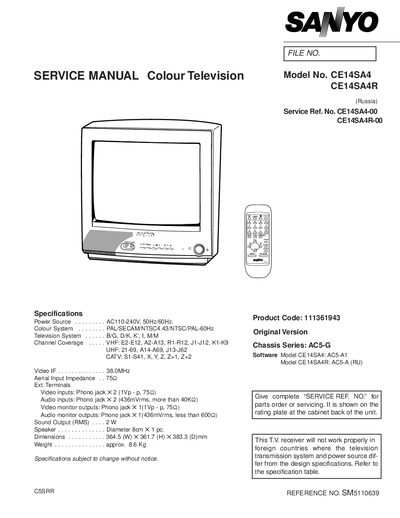

This Service Manual covers the Sanyo CE14SA4 (and CE14SA4R) colour television. It includes model numbers, chassis series, and reference numbers needed for parts ordering and servicing. The manual also warns that the TV will not operate correctly in regions with different broadcast standards or power supplies.
The document provides detailed technical specifications such as power source, colour system, channel coverage, and dimensions, as well as safety precautions, component identification, and circuit diagrams to assist technicians during repair and maintenance.
| Power Source | AC110-240V, 50Hz/60Hz |
|---|---|
| Colour System | PAL/SECAM/NTSC4.43/NTSG/PAL-60Hz |
| Television System | B/G, D/K, K’, |, M/M |
| Channel Coverage | VHF: E2‑E12, A2‑A13, R1‑R12, J1‑J12, K1‑K9; UHF: 21‑69, A14‑A69, J13‑J62; CATV: S1‑S41, X, Y, Z, Z+1, Z+2 |
| Video IF | 38.0 MHz |
| Aerial Input Impedance | 75 Ω |
| Dimensions (W×H×D) | 364.5 mm × 361.7 mm × 383.3 mm |
| Weight | ≈8.6 kg |
| Speaker | 8 cm diameter, 1 pc |
| Sound Output (RMS) | 2 W |
It operates on an AC power source ranging from 110 V to 240 V at 50 Hz or 60 Hz.
The unit measures 364.5 mm wide, 361.7 mm high, and 383.3 mm deep, and weighs approximately 8.6 kg.
