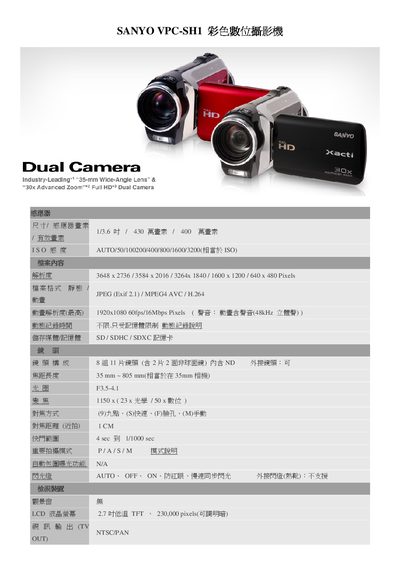

SANYO VPC-SH1 Color digital camera, with 4.3 million pixels, 1/3.6 inch sensor, F3.5-4.1 aperture, 2.7 inch low temperature TFT LCD screen, can record 1920x1080 60fps/16Mbps Pixels video, supports SD/SDHC/SDXC memory card.
This manual describes the features of the Sanyo VPC‑SH1 color digital camera, including its 35 mm wide‑angle lens, 23× optical zoom, 4.3 MP still sensor, and Full HD video recording up to 1920×1080 @ 60 fps. It also covers focus modes, ISO range, audio recording, and LCD display specifications.
The guide explains how to use the camera with SD/SDHC/SDXC cards, the DB‑L90 battery, and optional AC power. It includes information on power‑on procedures, menu navigation in Chinese, HDMI output, and accessories such as the USB transfer cable and AV video cable. This manual is written in Chinese.
| Effective still image resolution | 4.3 MP |
|---|---|
| Maximum video resolution | 1920×1080 at 60 fps, 16 Mbps |
| Lens construction | 8 elements, 11 groups |
| Focal length range | 35 mm – 805 mm (equivalent 353 mm) |
| Zoom | 23× optical, 150× digital |
| LCD size | 2.7‑inch TFT, 230,000 pixels |
| Supported memory cards | SD, SDHC, SDXC |
| Battery model | DB‑L90 |
| Weight | 204 g (body only), 235 g (with battery) |
| ISO sensitivity | Auto, 50–3200 |
| Audio recording | 48 kHz stereo |
| Focus modes | 9‑point, Single, Face detection, Manual |
| Shutter speed range | 4 s – 1/1000 s |
The camera supports SD, SDHC, and SDXC cards.
It can record video up to 1920×1080 at 60 fps with a bitrate of 16 Mbps.
The camera uses the DB‑L90 rechargeable battery.
