ZY_WRBD-2W series power module is a wide voltage input isolated voltage stabilized single output power module. It has high conversion efficiency, good temperature characteristics, strong capacity load capability, short circuit protection, etc. The module is suitable for computer peripherals, industrial control systems, data communication equipment, etc.

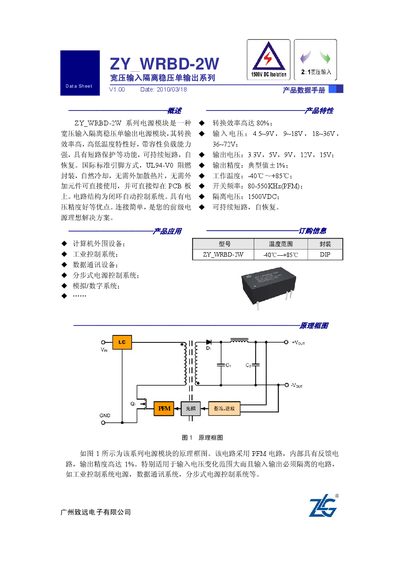

This handbook describes the ZY WRBD-2W series wide‑input voltage isolation regulator, covering its key specifications, performance curves, mechanical dimensions and pin layout. It also includes recommended wiring diagrams and safety notices.
The document contains detailed tables of electrical parameters, temperature ranges, cooling methods and recommended external component values for optimal operation. This manual is written in Chinese.
| Cooling method | Natural cooling |
|---|
The device is designed for natural cooling without additional heatsinks.
