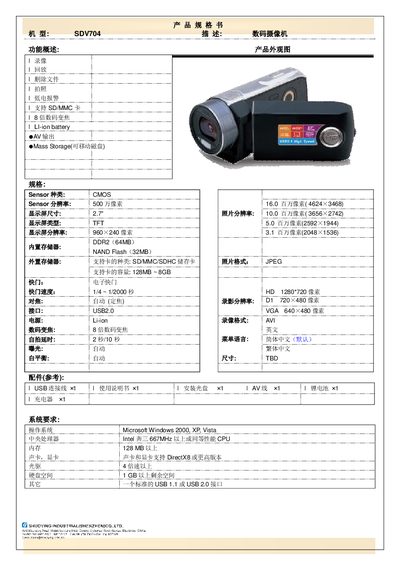

This document introduces the specifications and functions of the SDV704 digital camera. The camera has functions such as recording, playback, file deletion, and taking photos. It supports SD/MMC cards and 8x digital zoom. Additionally, it has a low battery alarm function, supports AV output, and can be used as a removable disk. The camera uses a CMOS sensor with a photo resolution of 5 million pixels and a 2.7-inch TFT display screen. It is equipped with DDR2 built-in memory and supports external storage cards with capacities ranging from 128MB to 8GB. The camera has various interfaces including USB2.0, VGA, and AV output. It is powered by a Li-ion battery, supports AVI recording format, and has 8x digital zoom. The menu language of the camera can be selected as English, Simplified Chinese, or Traditional Chinese. The document also lists the accessories and system requirements of the camera.
The SDV704 is a digital video camera that records, plays back, deletes files, takes photos, and provides low‑battery alerts. It supports SD/MMC cards and appears as a mass‑storage device when connected.
The camera uses a CMOS sensor with up to 16 MP resolution, a 2.7‑inch TFT display, and offers 8× digital zoom, electronic shutter speeds from 1/4 to 1/2000 s, and records video in AVI format at 1280×720 px. Power is supplied by a Li‑ion battery, and connectivity is provided via USB 2.0 and VGA output. This manual is written in Chinese.
| Sensor type | CMOS |
|---|---|
| Sensor resolution | 5 MP (500 万像素) |
| Maximum photo resolution | 16 MP (4624×3468) |
| Display size | 2.7 inches |
| Display type | TFT |
| Internal storage | 32 MB NAND Flash |
| Supported memory cards | SD, MMC, SDHSC |
| Maximum card capacity | 8 GB |
| Video recording resolution | 1280×720 px |
| Recording format | AVI |
| Digital zoom | 8× |
| Shutter speed | 1/4 – 1/2000 s |
| Battery type | Li‑ion |
| Interface | USB 2.0 |
It supports SD, MMC, and SDHSC memory cards.
The camera records video at 1280 × 720 pixels.
The device is powered by a Li‑ion battery.
