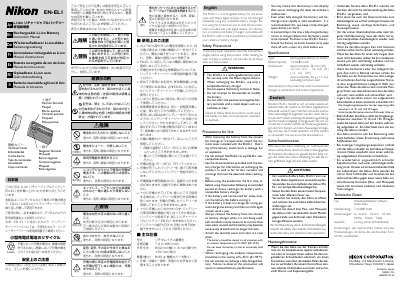

EN-EL1 Li-ion battery instruction manual, introducing the battery's usage methods, precautions, and storage methods
The EN-EL1 is a rechargeable lithium‑ion battery designed for Nikon digital cameras. The manual provides safety precautions, proper handling, charging procedures, and storage guidelines to ensure reliable performance and prevent hazards.
Technical specifications are listed, including type, rated capacity, dimensions and weight. The document also advises on maintenance, replacement indicators and environmental conditions for storage and charging.
| Type | Rechargeable lithium‑ion battery |
|---|---|
| Rated Capacity | 7.4 V / 680 mAh |
| Dimensions | ≈ 32 mm × 16 mm × 52 mm (W × D × H) |
| Weight | ≈ 46 g (excluding terminal cover) |
The EN-EL1 battery has a rated capacity of 7.4 V and 680 mAh.
Store the battery in a dry place at an ambient temperature of 15 °C to 25 °C and keep the terminal cover attached.
Yes, but the battery will discharge more rapidly in cold conditions, so keep a fully‑charged spare on hand.
