UR-E3 is a converter ring for COOLPIX775, which can be used to connect COOLPIX775 to two different converter lenses (wide-angle converter lens WC-E24 and telephoto converter lens TC-E2).
This manual explains how to safely attach and remove the UR‑3 lens adapter on a Nikon COOLPIX 775. It includes safety warnings, a list of compatible wide‑angle (WC‑24, WC‑E63) and telephoto (TC‑E2) converters, and camera‑setting recommendations when using converters.

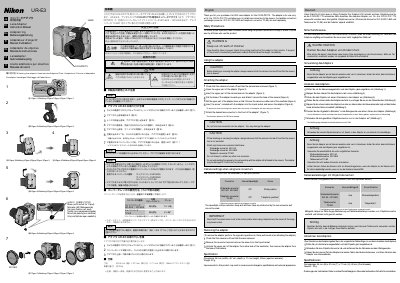

The document contains illustrated step‑by‑step procedures for attaching the adapter, securing it with the supplied screw, installing a converter, and removing the adapter. It also lists the physical dimensions, weight, and notes that the internal flash and red‑eye reduction lamp are disabled when a converter is mounted.
| Dimensions (W × D × H) | 54 mm × 67 mm × 71 mm |
|---|---|
| Aperture Diameter | 28 mm |
| Weight | 20 g |
| Compatible Converters | WC‑24, WC‑E63 (wide‑angle) and TC‑E2 (telephoto) |
| Internal Speedlight | Off |
The adapter works with Nikon wide‑angle converters WC‑24 and WC‑E63, and the telephoto converter TC‑E2.
First ensure the camera is off and the lens is retracted, open the upper part of the adapter, insert the lens, pull the base around the camera bottom, lower the upper part, and secure it with the supplied screw.
Always make sure the camera is turned off and the lens is retracted before attaching or removing the adapter, keep the adapter out of reach of children, and do not force any converter into the adapter.
